Metal doors

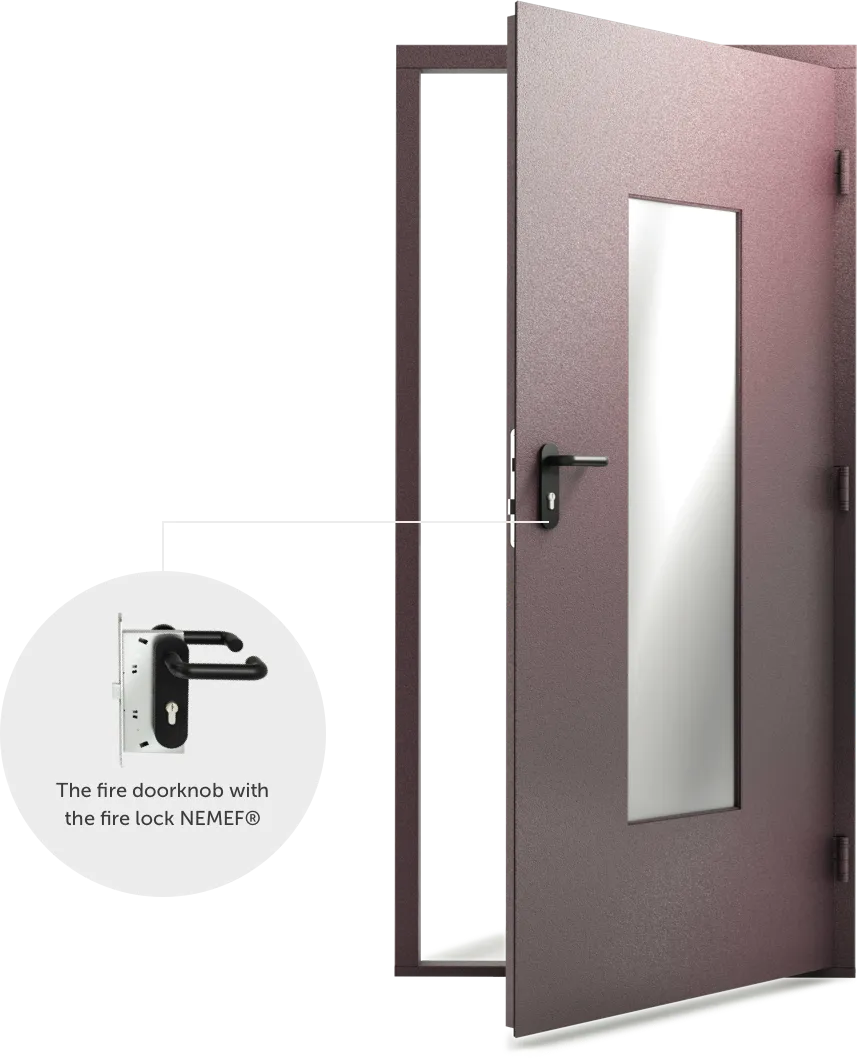

Metal fire doors (MFD), single-leaf

Euroformat fire doors are made in accordance with State Building Codes of Ukraine DBN V.1.1-7-2016 (cl.64) and DSTU B V.2.6-7:2009 (cl. 5.2.1) and are certified by the State Certification Center of SES of Ukraine.

Our company offers metal fire doors of two types: with fire resistance ratings ЕІ 60 and ЕІ 30.

Frame
Box section, metal thickness: 2 mm
Leaf
Total thickness: 52 mm. Metal thickness: 1.2 mm. Filler material: mineral wool. 3 stiffeners.
Hinges
2 or 3 heavy duty hinges — in accordance with the leaf weight
Sealant
  • Flame retardant tape around the leaf perimeter
  • Foam sealant
Lock
Fire lock NEMEF®
Doorknob
Fire doorknob NEMEF®
Paintwork
Polymer powder paint, RAL colour to be selected by the customer
Paintwork
  • Door closer, latching/not latching
  • Anti-theft hinge lugs
  • Pre-coating with zinc-containing paint for exterior doors
  • Glazing up to 25 %
Construction aperture
Height: 1800 to 2600 mm
Width: 600 to 1000 mm
MFD single-leaf, fire resistance rating ЕІ 60: horizontal section

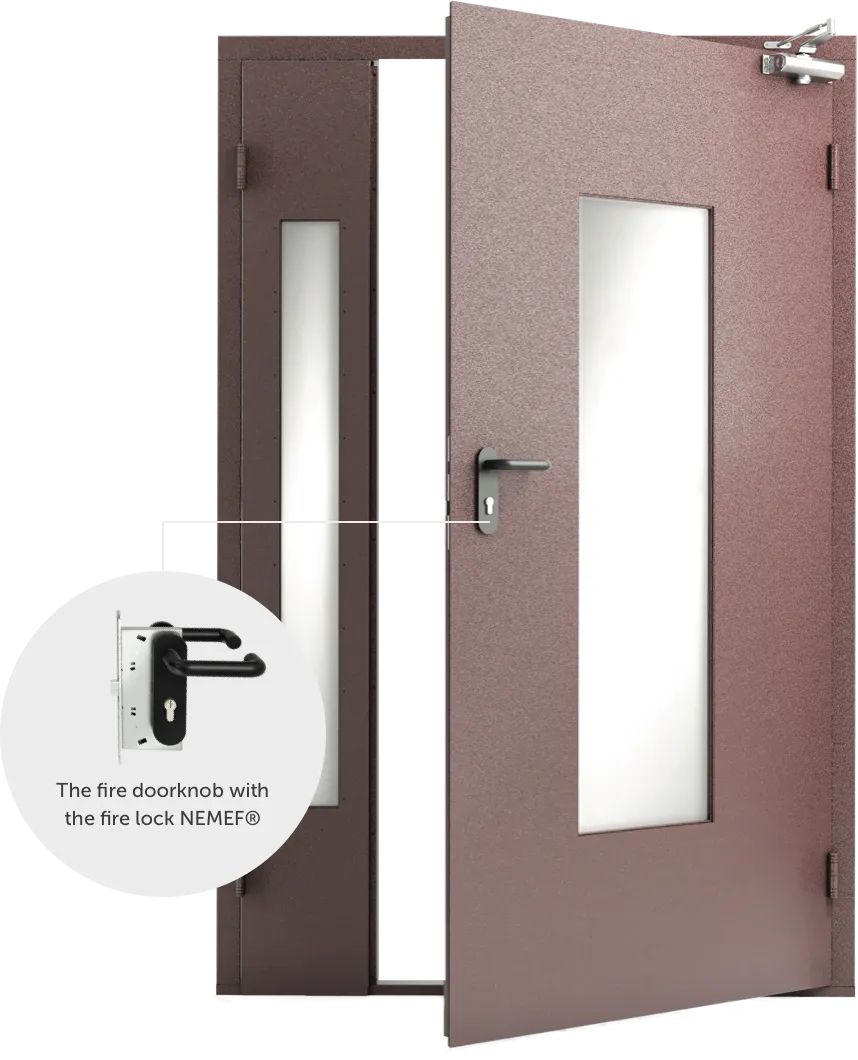

Metal fire doors (MFD), double-leaf

Euroformat fire doors are made in accordance with State Building Codes of Ukraine DBN V.1.1-7-2016 (cl.64) and DSTU B V.2.6-7:2009 (cl. 5.2.1) and are certified by the State Certification Center of SES of Ukraine.

Our company offers metal fire doors of two types: with fire resistance ratings ЕІ 60 and ЕІ 30.

Frame
Box section, metal thickness: 2 mm
Leaf
Total thickness: 52 mm. Metal thickness: 1.2 mm. Filler material: mineral wool. 3 stiffeners.
Hinges
2 or 3 heavy duty hinges — in accordance with the leaf weight
Sealant
  • Flame retardant tape around the leaf perimeter
  • Foam sealant
Lock
Fire lock NEMEF®
Doorknob
Fire doorknob NEMEF®
Paintwork
Polymer powder paint, RAL colour to be selected by the customer
Options
  • Door closer, latching/not latching
  • Anti-theft hinge lugs
  • Pre-coating with zinc-containing paint for exterior doors
  • Glazing up to 25 %
Construction aperture
Height: 2000 to 2600 mm
Width: 1100 to 1500 mm

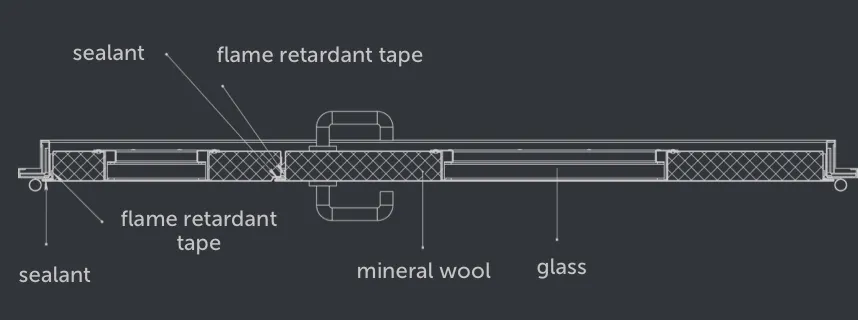

Double-leaf MFD, fire resistance rating ЕІ 60: horizontal section

Vandal-proof technical doors

Technical doors feature robust metal frames that are resistant to deformations, external impacts, or fire. A perfect choice for apertures in utility or warehouse spaces where safekeeping of property is necessary but no fire resistance standards are in place.

Frame
Steel roll-formed section, metal thickness: 2.5 mm
Leaf
Metal thickness: 1.2 mm
Hinges
2 heavy duty hinges
Sealant
Foam sealant
Lock

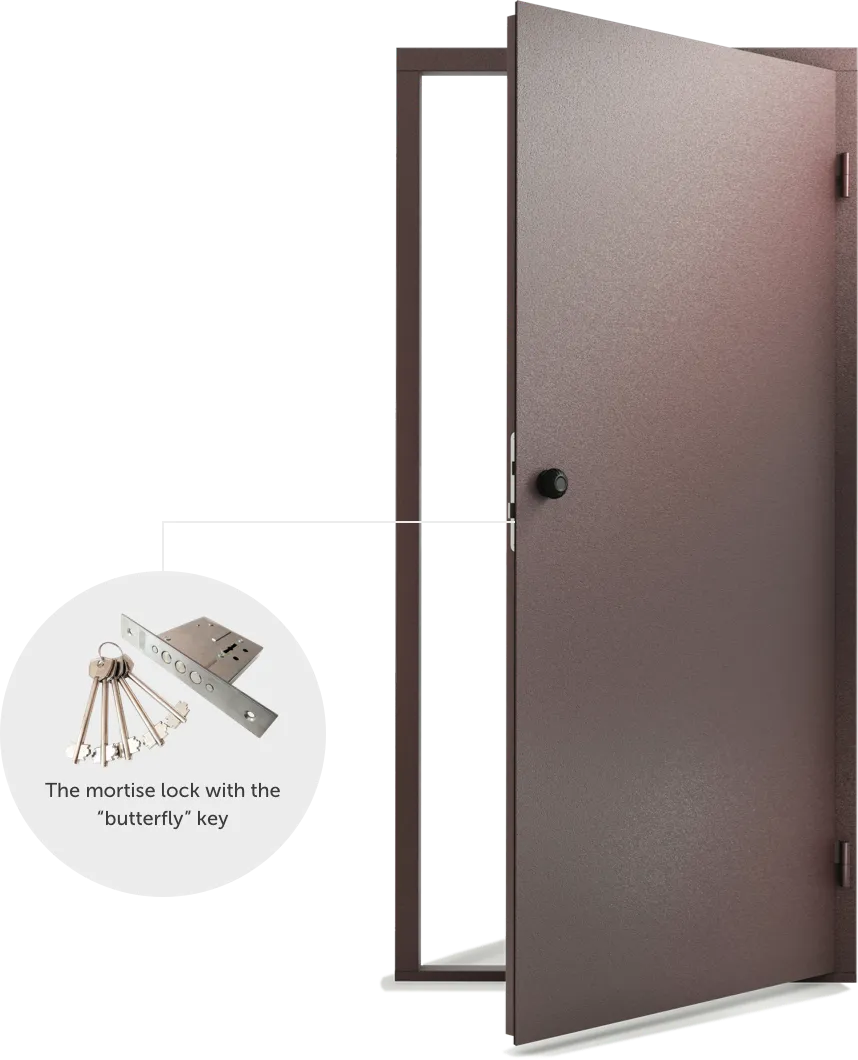

Mortise lever lock
Doorknob
Zephyr model, steel, powder coating
Paintwork
Polymer powder paint, RAL colour to be selected by the customer
Options
  • Door closer, latching/not latching
  • Anti-theft hinge lugs
  • Pre-coating with zinc-containing paint for exterior doors
Construction aperture
Height: 1800 to 2600 mm
Width: 600 to 1000 mm

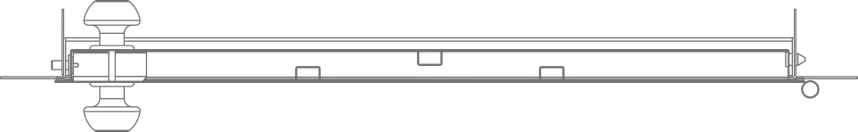

Vandal-proof technical doors: horizontal section

Fire hatches ЕІ-60

Metal fire hatches are intended for apertures in fire barriers with standard fire-resistance rating EI 60 (60 min).
Fire hatches with ЕІ 60 rating are manufactured based on specifications approved by the State Certification Center of SES of Ukraine.

Frame
Box section, fixation through the box, metal 2 mm
Leaf
Thickness: 52 mm. Metal thickness: 1.2 mm. Filler material: mineral wool.
Hinges
2 heavy duty hinges
Sealant
  • Flame retardant tape around the leaf perimeter
  • Foam sealant
Lock
Fire lock NEMEF®
Doorknob
Fire doorknob NEMEF®
Paintwork
Polymer powder paint, RAL colour to be selected by the customer
Options
Pre-coating with zinc-containing paint for exterior hatches
Construction aperture
Height: 300 to 1800 mm
Width: 300 to 1400 mm

Metal single-leaf fire hatch, fire resistance rating ЕІ 60: horizontal section

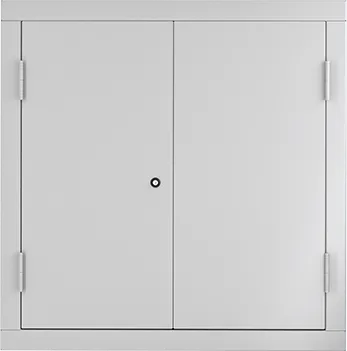

Technical hatches

Metal technical hatches are intended for apertures in duct shafts and communications nodes. Technical hatches feature robust design that ensures restricted access.

Frame
Overlay frame with casing, steel roll-formed section, metal thickness to be specified individually based on the customer’s needs
Leaf
Metal thickness: 1.2 mm
Hinges
2 hinges
Lock
Mortise cam lock
Paintwork
Polymer powder paint, RAL colour to be selected by the customer
Options
  • Padlock
  • Key storage compartment
  • Inspection window
Construction aperture
Single-leaf hatches:
Height: 200 to 1200 mm
Width: 200 to 1000 mm
Double-leaf hatches:
Height: 300 to 2200 mm
Width: 1100 to 1500 mm


How we work

Specification

Based on the drawings of the customer, we make a specification.

Measurements

We go to the object, make measurements of the construction openings.

Production

We make adjustments in the order based on the actual parameters, place in production.

Transportation

We prepare the order for departure, sort the doors by floor by floor.

Assembling

We bring to the construction site and carry out installation on the floors.

Control

We carry out control of the performed works with the participation of the technical supervision service.
